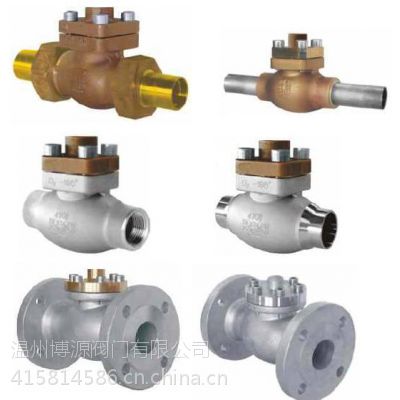

| 品牌：博源 | 材质：碳钢 | 连接形式：法兰 |
| 类型(通道位置)：直通式 | 驱动方式：水力控制 | 介质温度：426℃ |
| 工作压差：16 | 流动方向：单向 | 用途：止回 |
| 适用介质：水 | 压力环境：低压 | 规格：DN15-DN600 |
公称通径 | 尺寸 | ||||||||
mm | in | L | D | D1 | D2 | b | f | n-Φd | H |
DH44Y-150Lb | |||||||||
50 | 2 | 203 | 152 | 120.5 | 92 | 16 | 1.6 | 4-19 | 180 |
80 | 3 | 241 | 192 | 152.5 | 127 | 19 | 1.6 | 4-19 | 190 |
100 | 4 | 297 | 229 | 190.5 | 157 | 24 | 1.6 | 8-19 | 203 |
125 | 5 | 330 | 254 | 216 | 186 | 24 | 1.6 | 8-22 | 229 |
150 | 6 | 356 | 279 | 241.5 | 216 | 26 | 1.6 | 8-22 | 257 |
200 | 8 | 495 | 342 | 298.5 | 270 | 29 | 1.6 | 8-22 | 292 |
250 | 10 | 622 | 406 | 362 | 324 | 31 | 1.6 | 12-25 | 355 |
300 | 12 | 698 | 483 | 432 | 381 | 32 | 1.6 | 12-25 | 396 |
DH44Y-300Lb | |||||||||
50 | 2 | 267 | 165 | 127 | 92 | 23 | 1.6 | 8-19 | 178 |
80 | 3 | 318 | 210 | 168.5 | 127 | 29 | 1.6 | 8-22 | 216 |
100 | 4 | 356 | 254 | 200 | 157 | 32 | 1.6 | 8-22 | 241 |
125 | 5 | 400 | 279 | 235 | 186 | 35 | 1.6 | 8-22 | 267 |
150 | 6 | 444 | 318 | 270 | 216 | 37 | 1.6 | 12-22 | 305 |
200 | 8 | 533 | 381 | 330 | 270 | 42 | 1.6 | 12-25 | 368 |
250 | 10 | 622 | 445 | 387 | 324 | 48 | 1.6 | 16-29 | 394 |
300 | 12 | 711 | 521 | 451 | 381 | 51 | 1.6 | 16-32 | 445 |
DH44Y-600Lb | |||||||||
50 | 2 | 295 | 165 | 127 | 92 | 33 | 6.4 | 8-19 | 203 |
